Coating |
N/A Titanium Nitride (TiN) AlTiN-CrN TiCN CrN/CrC AlTiN TiAlN TiAlSiCrN ZrN DLC (ta-C) DLC (a-C:H) Me-DLC C-DLC |
Substrate |
N/A
Alloy Steel Tool Steel High Speed Steel (HSS) High Speed Cobalt (HSCo) Stainless Steel Carbide Titanium Tungsten Cobalt Note: Below materials require pre-coating plating with chrome or nickel to be suitable for this process. Aluminum Brass Acrylonitrile Butadiene Styrene (ABS) Plastic Zinc-Die Castings Bronze |
Coating Characteristics |
N/A Micro-Hardness (1500 to 8000 HV) Low Coefficient of Friction (0.1 to 0.35) Thin Film (Average 2 to 5 µm) Low Processing Temperature (320 to 800 °F) High Vacuum Application (10-2 to 10-4 mbar) Line of Sight Coating Deposition Strong Bonding to Substrate No Post-Coating Heat Treating Required No Coating Buildup on Edges Replicates Existing Surface Finishes High Adhesion High Wear Resistance Eliminates Micro-Cracking More Chemically Inert Decorative Substrate Flexibility Color Replication Ultraviolet (UV) Protection Color Fastness Environmentally Friendly High Optical Properties High Mechanical Properties Versatility |
Richkote™ Decorative Coating Color Options |
N/A Anthracite Black Black Rainbow Blue Brass Bronze Champagne Copper Coyote Flat Dark Earth Gold Graphite Green Nickel Oil-Rubbed Bronze Purple Rainbow Rose Gold Stainless Steel Custom Colors Available on Request |
Application Process |

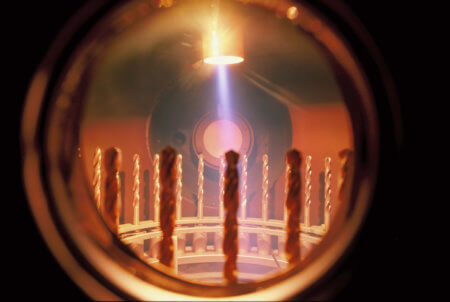

N/A Physical Vapour Deposition (PVD)/Vacuum Coating Cathodic Arc Pulsed Arc Filtered Arc Ion Beam Plating Reactive Sputtering Magnetron Sputtering High Power Impulse Magnetron Sputtering (HIPIMS) Duplex - Plasma Nitriding and Physical Vapour Deposition (PVD) |
Applications |
N/A Metal Cutting Tooling & Drills Metal Forming Tooling Injection Molding Tooling Powder Compaction Punches & Dies Die Casting Molds Kitchen & Bathroom (Plumbing Fixtures) Door & Window Hardware Automotive (Interior & Exterior) Marine Hardware & Trim Watches Jewelry Aircraft Interiors Appliances Architectural Firearms Cutlery Musical Instruments Fashion Accessories Signs & Displays Consumer Products Engines/Engine Components Sporting Equipment |
Additional Services |
N/A Research & Development Quality Control Testing |
Tolerance (±) |
N/A 0.0001 in |
Part Size |
N/A Based on Customer Requirements |
Production Volume |
N/A Prototype Low Volume High Volume Blanket Orders |
Lead Times |
N/A Quoted on Job by Job Basis Emergency Services Available Rush Services Available |
Industry Focus |
N/A Aerospace Appliance Commercial Appliance Residential Architecture Auto/Truck/Transportation Automotive Biomedical Biotechnology Building & Construction Commercial Communications Consumer Goods Household Industrial Injection Molding Machine Tools Machinery Manufacturing Marine Medical Medical Devices Molding Oil & Gas Pipeline Power Generation Residential Tool & Die Transportation |
Industry Standards |
N/A ISO-9001:2015 - 3rd Party Certified ISO-13485:2016 - 3rd Party Certified (PA location only) ISO/TS 16949 - Compliance to Audit Criterion ISO 14001:2015 & OHSAS 18001:2007 - 2nd Party Certified 21 CFR Part 820 - Medical Device Quality System Regulation - 2nd Party Compliance CQI-12 - Special Process: Coating System Assessment NADCAP - AC 7109/2 - Compliance to Audit Criterion RoHS/REACH/WEEE Compliance Bureau of Alcohol, Tobacco, Firearms, and Explosives - Type 7 FFL and SOT Quality System Regulation 21 CFR Part 820 of the FDA ISO 10993 |
File Formats |
N/A PDF GIF JPEG DWG DXF PNG DOC/DOCX XLS/XLSX PPT/PPTX TIFF ZIP |
