General Capabilities |
N/A Research & Development Quality Control |
Examination Procedures |
N/A Thin Film Material Analysis Mechanical Property Analysis Physical Property Analysis Elemental Property Analysis |
Metallographic Analysis |
N/A Macrostructure Microstructure Composition Hardness Film Hardness Coating Adhesion Tribological Performance (of Thin Films) Thin Film Thickness |
Metallurgical Inspection |

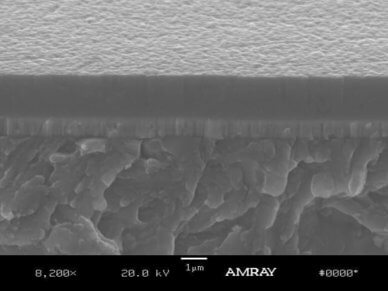

N/A High Resolution Scanning Electron Microscopy (SEM) Indention Testing |
Magnification |
N/A 20 to 100,000 Times |
Equipment |

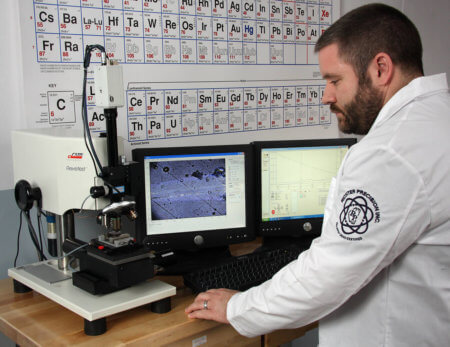

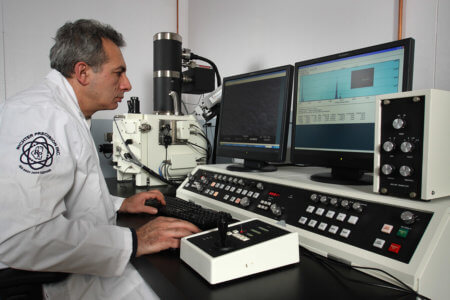

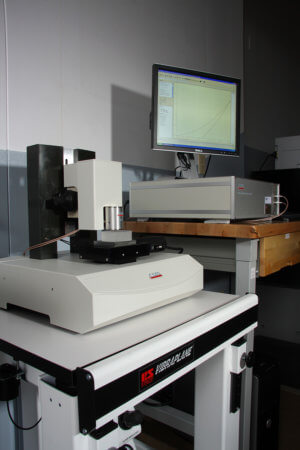

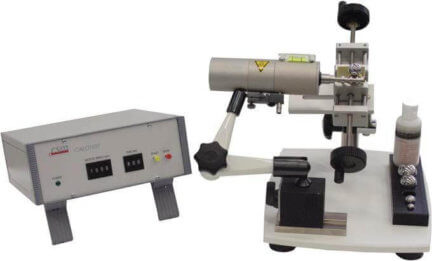

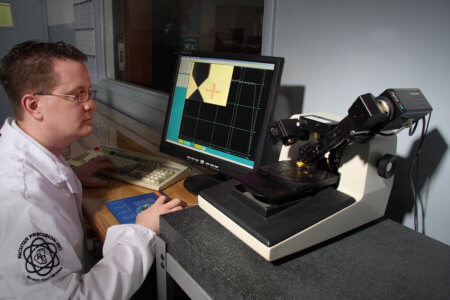

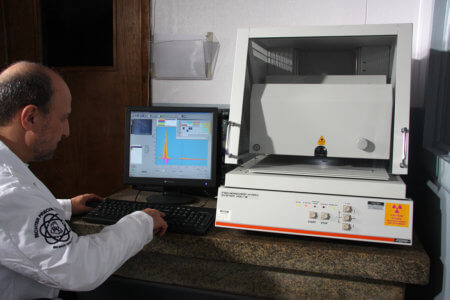

N/A AMRAY 1850 microscope equipped with a field emission source, secondary electron and back scatter detectors and a qualitative/quantitative energy dispersive X-ray detector system CSM Nano-Indentation Tester CSM Revetest Dynamic Scratch Adhesion Tester CSM Pin-on-disc Sliding Wear Tribometer CSEM Calotest® or FischerScope XDL-B X-Ray Fluorescence Equipment |
Part Size |
N/A Based on Customer Requirements |
Production Volume |
N/A Prototype Low Volume High Volume Blanket Orders |
Lead Times |
N/A Quoted on Job by Job Basis Emergency Services Available Rush Services Available |
Industry Focus |
N/A Aerospace Appliance Commercial Appliance Residential Architecture Auto/Truck/Transportation Automotive Biomedical Biotechnology Building & Construction Commercial Projects Communications Consumer Goods Household Industrial Injection Molding Machine Tools Machinery Manufacturing Marine Medical Medical Devices Molding Oil & Gas Pipeline Power Generation Residential Tool & Die Transportation |
Industry Standards |
N/A ISO-9001:2015 - 3rd Party Certified ISO-13485:2016 - 3rd Party Certified (PA location only) ISO/TS 16949 - Compliance to Audit Criterion ISO 14001:2015 & OHSAS 18001:2007 - 2nd Party Certified 21 CFR Part 820 - Medical Device Quality System Regulation - 2nd Party Compliance CQI-12 - Special Process: Coating System Assessment NADCAP - AC 7109/2 - Compliance to Audit Criterion RoHS/REACH/WEEE Compliance Bureau of Alcohol, Tobacco, Firearms, and Explosives - Type 7 FFL and SOT Quality System Regulation 21 CFR Part 820 of the FDA ISO 10993 |
File Formats |
N/A PDF GIF JPEG DWG DXF PNG DOC/DOCX XLS/XLSX PPT/PPTX TIFF ZIP |
